Locking elements
MA 500 * Holding magnet for locking an emergency exit with magnetic force
- Integrated monitoring controls locking status
- Separate door contact enables door status message
- Different installation sets offer three different installation situations
Application Areas
- EltVTR-compliant locking of an emergency exit to prevent unauthorised access
- Single and double leaf doors in escape and rescue routes
- Fire protection doors
Technical data
| MA 500 | |
| Width | 265 mm |
| Height | 66 mm |
| Depth | 41 mm |
| Type of installation | with corresponding mounting set (hinge side, opposite hinge side or reveal) |
| Service temperature | -10 - 50 °C |
| IP rating | IP30 |
| Operating voltage | 24 V DC |
| Current consumption | 250 mA |
| Conforms to the EltVTR (guidelines for electronic locking systems) | Yes |
| Conforms to EN 13637 | Yes |
Downloads

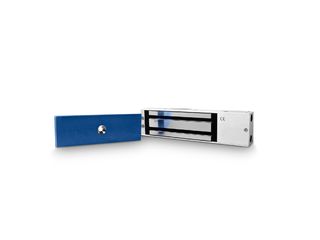

Product shot
Holding magnet MA 500
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet
Certificate
Tender texts
Flyer/folder
Product brochure
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
