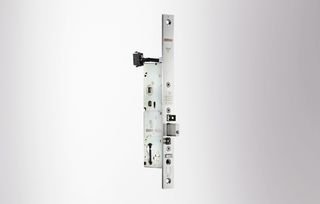

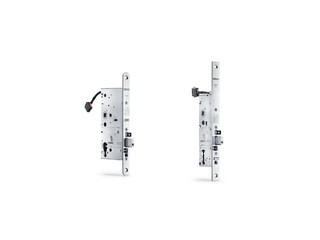

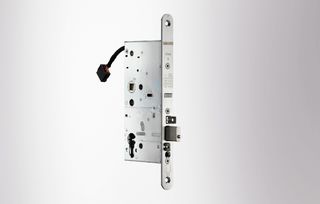

IQ lock C DL * Mechanical contact lock with feedback contacts for double leaf doors
- Mechanical self-locking ensures automatic crossbar projection every time the door is closed
- Unlocking of active leaf by activating passive leaf (full panic function)
- Divided cross latch prevents the bolt from locking even under side-load
- Integrated feedback contacts make complete monitoring of the door possible
- Optional sabotage monitoring or cylinder contact
- Activation of emergency exits secured by emergency exit systems possible without key switch
- Locking in accordance with insurance requirements ensured
- Small rear backset and small dimensions of the lock case
Application Areas
- Double leaf emergency exit and panic doors (left hand and right hand door)
- Doors along escape and rescue routes
- Fire and smoke protection doors
Technical data
| IQ lock C DL | |
| DIN direction | left / right |
| Panic function / mechanical self-locking | Yes |
| Divided cross latch (3 mm gap between latch and bolt) | Yes |
| Feedback contacts for lock states | Yes |
| Optional sabotage monitoring or cylinder contact | Yes |
| Current consumption | N/A, N/A |
| Contact rating | 30 V / 500 mA |
| Resistant to forcing | 10000 N |
| Connector cable length | 15 m |
