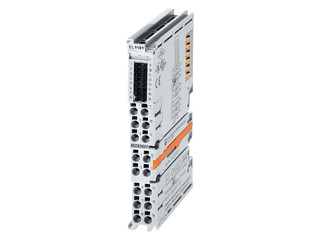

Building automation systems
myGEZE Control potential distribution terminal 0 V DC Potential distribution provides 16 terminal points with a 0 V DC potential
- Reduces the use of additional terminal blocks on the terminal strip
- Conductor connection can be completed without tools in direct plug-in technique for single-wire conductors.
- Number of outputs 16 x 0-V contact
Potential distribution provides 16 terminal points with a 0 V DC potential
Application Areas
- Use in conjunction with digital input or output terminals
- Allows for pickup of the potential without additional terminal blocks or wiring work
Installation situations in reference objects and videos
myGEZE Control
myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.
Technical data
| myGEZE Control potential distribution terminal 0 V DC | |
| Dimensions | 12 x 100 x 68 mm |
| Service temperature | -10 - 40 °C |
| Type of installation | Top hat rail mounting |
| Power supply for external consumers (24 V DC) | 10 A |
