Locks and strike boxes

US 50 * Glass Fitting centre patch lock with square bolt

GEZE Glass Fitting US 50
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

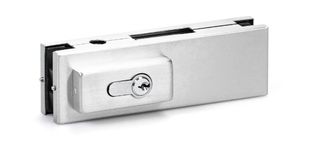

Glass Fitting centre patch lock with square bolt

Application Areas

  • For full-glass doors
  • For glass thicknesses 10 and 12 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors

Technical data

US 50
Type of installation Glass installation
Length 163 mm
Width 32 mm
Height 51 mm
Min. Glass thickness 10 mm
Max. Glass thickness 12 mm

Variants & Accessories
