TS 1500 G

TS 1500 G with hold-open * Overhead door closer with guide rail for up to 750 mm leaf width with mechanical hold-open device

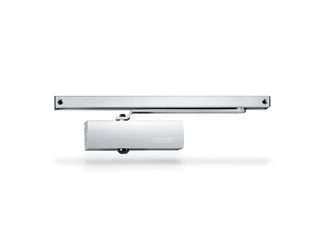

TS 1500 G overhead door closer with guide rail Can be used on right and left leaf doors with a leaf width up to 750 mm
  • Fixed closing force of EN1
  • Can be used for right and left hand doors without conversion
  • Mechanical hold-open unit in the guide rail with hold-open area 80°-130°
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • All functions can be adjusted from the front
Contact us

Overhead door closer with guide rail for up to 750 mm leaf width with mechanical hold-open device

The overhead door closer TS 1500 G with guide rail is suitable for 1-leaf internal doors up to 750 mm leaf width (fixed closing force EN size 1).

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 750 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side

Technical data

TS 1500 G with hold-open
Leaf width (max.) 750 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment At the side
Hold-open function Mechanical
