Opening drives
EOL N Synchro * Chain drive with universal brackets for easy automation in ventilation mode
- Cost-effective and powerful chain drive for 230 V ventilation applications
- Fast and simple installation
Application Areas
- Natural ventilation (230 V) also designed for private homes
- Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation
Technical data
| EOL N Synchro | |
| Dimensions | 337 x 49 x 80 mm |
| Closing speed (max.) | 9.5 mm/s |
| Compressive force | 300 N |
| Tensile force | 500 N |
| Operating voltage | 230 V |
| Current consumption | 0.15 A |
| Power consumption | 25 W |
| Duty rating | 40 % |
| Service temperature | -5 - 50 °C |
| IP rating | IP30 |
| protection rating | II |
| Syncro function | Yes |
Downloads

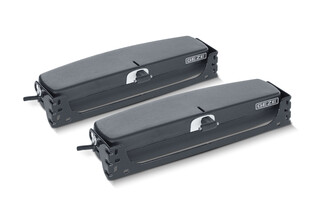

Chain drive EOL N 230 V S, black
LABELLING OBLIGATION:
© GEZE GmbH

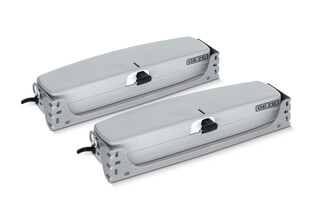

Chain drive EOL N 230 V S, grey
LABELLING OBLIGATION:
© GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
