GEZE TS 5000 ECline

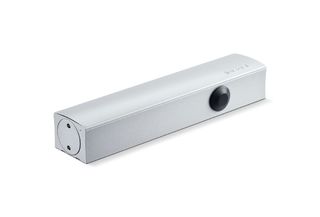

Closer body TS 5000 ECline * Main body for overhead door closer with guide rail EN 3-5 with back check

GEZE TS 5000 ECline Door closer
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted from the front via valve
  • Back check can be adjusted from the front via valve
  • Door closer, can be used for right and left hand doors
Show more
  • Minimal installation effort due to low number of individual parts and quick setting
  • Barrier-free in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
Contact us

Main body for overhead door closer with guide rail EN 3-5 with back check

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1250 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Access for all in accordance with DIN 18040 up to EN5

Technical data

Closer body TS 5000 ECline
Closing force in accordance with EN 1154 EN 3 - 5
Leaf width (max.) 1250 mm

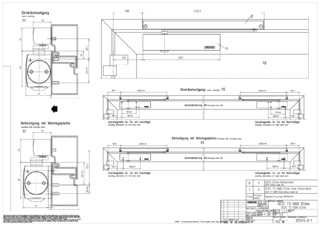

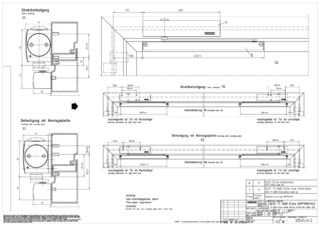

Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Approvals Door closer tested in accordance with EN 1154, DIN 18040 up to EN5 (1250 mm leaf width)
Suitability for fire protection doors Yes
Length 287 mm
Width 47 mm
Height 60 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve against wilful damage Yes
Thermo-control valves Yes
Integrated smoke switch No
Visual status display No
