TS 5000 E-ISM

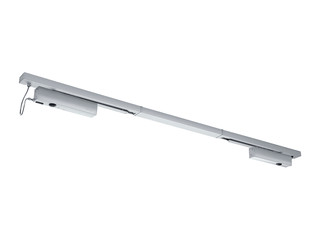

TS 5000 L-E-ISM VPK * Overhead door closer system with guide rail on opposite hinge side for double leaf doors with anti-panic function up to 2800 mm hinge clearance with GEZE CB flex carry bar, integrated closing sequence control and electric hold-open device

Door closer TS 5000 L-ISM VPK Overhead door closer system with guide rail opposite hinge side for double leaf doors with anti-panic function, closing sequence control and hydraulic latching action.
  • Complete package with two door closers TS 5000 L and TS 5000 L-IS with E-ISM guide rail
  • Closing force of EN2-6 with variable adjustment
  • Can be used for right and left hand doors without conversion
  • Electric hold-open device in the guide rail with hold-open area from 80°
  • Electric hold-open device in the guide rail with hold-open area of 80°-130°
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Show more
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be adjusted from the front
Contact us

Overhead door closer system with guide rail on opposite hinge side for double leaf doors with anti-panic function up to 2800 mm hinge clearance with GEZE CB flex carry bar, integrated closing sequence control and electric hold-open device

Application Areas

  • Fire and smoke protection doors
  • Double leaf single-action doors with panic function
  • Symmetrical and asymmetrical division of door possible
  • Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
  • Door leaf installation opposite hinge side
  • Hold-open systems with integrated hold-open device

Technical data

TS 5000 L-E-ISM VPK
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 1400 mm
Leaf width (max.) 1400 mm

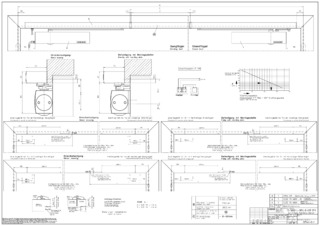

Type of installation Door leaf installation opposite hinge side
Opening angle (max.) 130 °
Input voltage 24 V DC
Minimum hinge clearance 1360 mm
Minimum passive leaf width 380 mm
Suitability for fire protection doors Yes
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Yes, hydraulically adjustable
Position of closing force adjustment Front
Visual closing force display Yes
Hold-open function Electrical
Hold-open device on the active leaf / passive leaf Yes / Yes
Hold-open range 80 °
Closing sequence control integrated Yes
