GEZE TS 5000 L-R-ISM

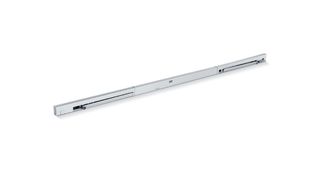

R-ISM guide rail ASSY GP TS 5000 * With closing sequence control, electrical hold-open device on both leaves, smoke switch control unit and levers

R-ISM guide rail BG TS 5000
  • Integrated electric hold-open device
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Integrated smoke switch control unit
  • Smoke switch with contamination indicator and adaption of the alarm threshold
  • Additional smoke detectors can be fitted
  • Operating voltage 230 V AC
Show more
  • Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • With screwed sliding block
  • Horizontally adjustable in the installation position by 4 mm through elongated holes
Contact us

With closing sequence control, electrical hold-open device on both leaves, smoke switch control unit and levers

Application Areas

  • Double leaf doors with closing sequence control
  • Hold-open systems with integrated hold-open device and smoke switch
  • Installation on the opposite hinge side
  • Right and left single-action doors
  • Symmetrical and asymmetrical division of door possible
  • Up to 2800 mm hinge clearance
  • Minimum hinge clearance 1560 mm, minimum width of the active leaf 905 mm and of the passive leaf 380 mm

Technical data

R-ISM guide rail ASSY GP TS 5000
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/50 Hz
Duty rating 100 %
IP rating IP20
Minimum hinge clearance 1560 mm
Minimum passive leaf width 380 mm
Approvals Hold-open device tested in accordance with EN 1155, Door closing sequence selector tested in accordance with EN 1158, General building approval from DIBt as a hold-open system
Length 2730 mm
Width 55 mm
Height 30 mm
Free swing function on active leaf No
opening restrictor upgradable Yes
Hold-open device Electrical
Hold-open device can be overridden Yes
Hold-open point 80 °
Integrated smoke switch Yes
Visual status display Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
Integrated closing sequence control Yes
Height correction possible Yes
Flexible opening restrictor Yes
