GEZE TS 3000 V

TS 3000 EN3 * Overhead door closer with guide rail for single leaf doors with a leaf width up to 950 mm

TS 3000 V overhead door closer with guide rail Can be installed on right and left single-action doors/fire and smoke protection doors.
  • Fixed closing force of EN3
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • All functions can be adjusted from the front
Contact us

Overhead door closer with guide rail for single leaf doors with a leaf width up to 950 mm

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 950 mm leaf width
  • Door leaf and transom installation on the hinge and opposite hinge side

Product data

TS 3000 EN3
Closing force in accordance with EN 1154 EN 3
Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm 950 mm
Leaf width (max.) 950 mm

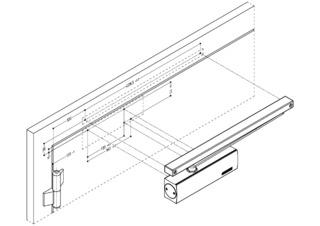

Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Transom installation hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Suitability for fire protection doors Yes
Closing force adjustable No
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Hold-open device Optional
Integrated smoke switch No
