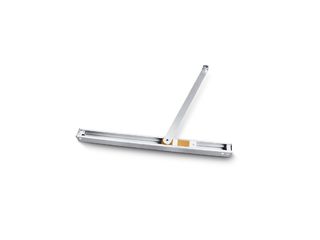

T-Stop guide rail TS 3000/ 5000 * With opening restrictor and lever
- Easy to replace with the standard guide rail
- Saves time as no floor mounted door stopper needs to be installed
- With screwed sliding block
With opening restrictor and lever
Application Areas
- Single leaf doors
- Installation on hinge side
- Right and left single-action doors
- For opening restriction without door stopper
Product specifications
T-Stop guide rail TS 3000/ 5000 | |
Length | 452.5 mm |
Width | 33 mm |
Height | 30 mm |
Free swing function | No |
Integrated opening assistance | No |
Opening restrictor integrated | Yes |
opening restrictor upgradable | No |
Hold-open device | Optional |
Hold-open device can be overridden | No |
Integrated smoke switch | No |
Integrated power supply | No |
Integrated closing sequence control | No |
Height correction possible | No |
Flexible opening restrictor | No |
Opening assistance can be switched off | No |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail.
