Radar movement detectors

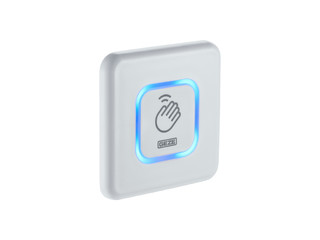

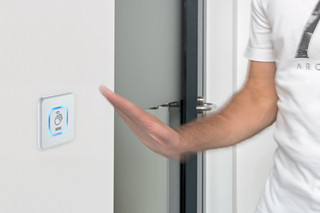

GC 307+ * Non-contact proximity switch for activating automatic doors

  • Doors can be opened without a requirement for tactile perception
  • External input for LED colour change
  • Detects persons and objects in a detection area of 10 - 60 cm
  • Scanning ranges adjustable to make environmentally and user-specific adjustments
  • Hand-height mounting ensures convenient, bacteria-free access
  • Can also be installed behind tiles or glass
Show more
  • Adjustable via DIP switches and remote control: acoustic feedback, LED colors, LED animations, pulse/toggle mode
Contact us

Non-contact proximity switch for activating automatic doors

Application Areas

  • Activation of automatic swing, revolving and curved sliding doors
  • Interior and external doors
  • Rooms with high hygiene requirements

Technical data

GC 307+
Technology Electromagnetic radar waves
IP rating IP65
Scanning range adjustment via DIP switch, with remote control
Installation height at hand level
Transmission frequency 24150 GHz
Service temperature -20 °C - 55 °C
Approvals RED 2014/53/EU, RoHS 2011/65/EU
