Sensor switch

LED sensor foot switch * Switch for activating automatic doors

  • Doors are easy to open with no hands
  • Capacitive sensor switch
Contact us

Switch for activating automatic doors

Application Areas

  • For convenient activation of automatic doors from the floor
  • Preferred for use in restaurants or hotel areas

Technical data

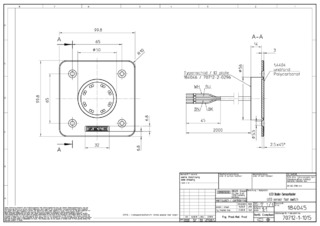

LED sensor foot switch
Dimensions 100 x 100 x 17 mm
Supply voltage 24 V DC
Current consumption 30 mA
IP rating IP69K
Type of installation Floor
Connection cable length 2000 mm
Material Stainless steel
Temperature range -30°C...+80°C
