TS 5000 L-R
R guide rail BG TS 5000 * With electric hold-open device, smoke switch control unit and lever, opposite hinge side
- Power supply for 230 V supply voltage
- Smoke switch with adaption of the alarm threshold, contamination indicator and concealed release button for testing
- Retention force of the electromechanical hold-open device can be variably adjusted
- Additional smoke switches can be connected
- Height compensation of +/- 2 mm possible
Application Areas
- Single leaf doors
- Hold-open systems with integrated hold-open device and smoke switch
- Installation on the opposite hinge side
- Right and left single-action doors
Technical data
| R guide rail BG TS 5000 | |
| Supply voltage | 230 V AC |
| Input voltage | 230 V AC |
| Frequency of supply voltage | 50/60 Hz |
| Duty rating | 100 % |
| IP rating | IP20 |
| Standard conformity | EN 1155 |
| Approvals | General building approval from DIBt as a hold-open system |
| Length | 745 mm |
| Width | 55 mm |
| Height | 30 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Electrical |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° |
| Smoke switch integrated | Yes |
| Contamination indicator | Yes |
| Adaption of the alarm threshold | Yes |
| Integrated power supply | Yes |
| Height correction possible | Yes |
| Flexible opening restrictor | Yes |
Downloads

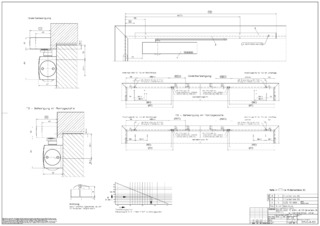

TS 5000 R guide rail, R guide rail TS 5000 opposite hinge side, TS 5000 R guide rail without electric hold-open device
