Door draw-in damper

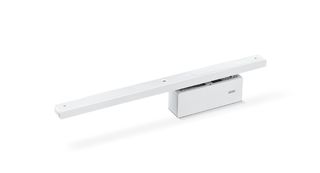

GEZE ActiveStop timber, surface-mounted Door damper on both sides for interior wooden swing doors

GEZE ActiveStop surface-mounted, silver, wood Enter your rooms more comfortably than ever before: The GEZE ActiveStop door damper can stop doors gently, close them quietly and keep them open comfortably. It eliminates issues like slamming doors, trapped fingers and damage to doors or furniture.
  • Door opening angle with variable adjustment from 80°-140°
  • Can be used for right and left hand doors without conversion
  • Soft opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping, quiet closing and comfortable keeping open of doors
  • Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
  • Secure holding of the door when open, meaning no door is stopper necessary
Show more
  • Opening and closing damping when installed can be set via a valve
  • Integrated safety valve offers overload protection
Buy online

Application Areas

  • Right and left timber single-action doors indoors
  • Room doors with high access convenience
  • Single-action doors up to 1100 mm leaf width
  • Surface-mounted installation, for retrofitting on existing doors
  • Barrier-free access in accordance with DIN 18040-2
Go to campaign page

Technical data

GEZE ActiveStop timber, surface-mounted
Depth 34 mm
Height 68 mm
Leaf weight (max.) 45 kg
Leaf width (max.) 1100 mm
Category of door flush-mounted, rebated
Identical design for DIN left and DIN right Yes
Installation type surface-mounted
Adjustable draw-in damper Yes, via valve
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° - 60 °
Draw-in damper in direction of opening movement from 60 °
Adjustable door opening angle Yes, stepless
Hold-open position adjustable 80 ° - 140 °
Safety valve againts overload Yes
