Boxer E

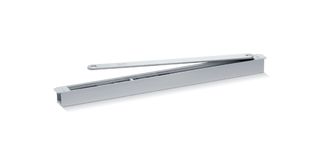

E guide rail Boxer * With lever and electric hold-open device
- Operating voltage 24 V DC
- Retention force of the electromechanical hold-open device can be variably adjusted
- With screwed slide block
Application Areas
- Single leaf doors
- Integrated installation
- Hold-open systems with integrated hold-open device
- Right and left single-action doors
Technical data
| E guide rail Boxer | |
| Input voltage | 24 V DC |
| Electrical power consumption | 1 W |
| Duty rating | 100 % |
| Residual ripple | 20 % |
| IP rating | IP43 |
| Standard conformity | EN 1155 |
| Length | 440 mm |
| Width | 31 mm |
| Height | 30 mm |
| Hold-open function | Electrical |
| Hold-open device can be switched on and off | Yes |
| Hold-open device can be overridden | Yes |
| Hold-open range | 80 ° - 120 ° |
| Flexible opening restrictor | Yes |
Downloads
E guide rail Boxer
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
