Ventilation control

IQ box KNX * Interface module for connecting the Slimchain,Powerchain and E 250 NT window drives in the KNX building bus

  • Activation and feedback of the window drives via the KNX building bus
  • One IQ box KNX per window connects up to four window drives and two locking drives
  • All drives from the GEZE IQ windowdrive series can be combined and integrated according to the planning status
  • Greater efficiency for building monitoring thanks to reliable status reports
  • Integrated push button interface to connect components such as push buttons and sensors
  • Status report from every automated window possible
Show more
  • Easy to retrofit, can be extended as required
Contact us

Interface module for connecting the Slimchain,Powerchain and E 250 NT window drives in the KNX building bus

Application Areas

  • Natural ventilation in façades and the roof area
  • Direct connection of GEZE Slimchain, Powerchain, E 250 NT drives to KNX building systems

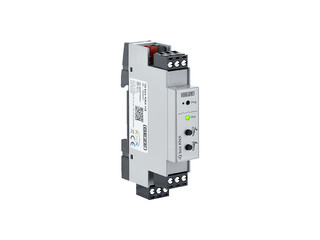

  • For top hat rail or flush-mounted installation

Product specifications

IQ box KNX
Dimensions 50 x 45 x 19 mm (IQ box KNX flush mounting), 98 x 62 x 18 mm (IQ box KNX top hat rail)
Type of installation Surface or flush-mounted housing
Max. cable length to push buttons 30 m
Max. cable length to window 50 m
Operating voltage 24 V, ± 25 %
Supply voltage 0.02 A
Temperature range -5 °C - 70 °C
IP rating / protection rating IP20 / III
KNX movement commands Open/close, step/stop, target position in %, speed in %, block
KNX status reports Position in %, opened, closed, not closed,-opening, closing, intermediate position
Ventilation Timed ventilation, gap ventilation, wind alarm, rain alarm
