Locking drives

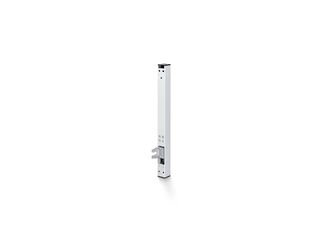

Power lock * Locking drive in combination with Slimchain, Powerchain or E 250 NT

  • System solution for locking in combination with Slimchain, Powerchain and E 250 NT window drives from the the IQ windowdrive series
  • Automatic locking of the window through access to the window transmission
  • Meets high specifications in terms of wind load, sealing in the event of rain and air tightness
  • Electronic position detection that unlocks the window before opening it
  • Electronic end-position cut-off offers protection against incorrect operation and overloading
  • High tensile and compressive force for up to six locking points
Show more
  • Locking and unlocking in six seconds
  • Synchronization of up to two Power lock and four window drives from the IQ windowdrive series possible
  • Tested in combination with window drives from the IQ windowdrive series in accordance with EN 12101-2 (SHEV)
Contact us

Locking drive in combination with Slimchain, Powerchain or E 250 NT

Application Areas

  • Additional safety and protection against weather conditions
  • For natural ventilation, smoke and heat extraction systems, natural smoke and heat extraction device (SHEV)
  • Can be used in the exhaust air and air intake
  • Inward-opening windows with bottom-hung, side-hung, top-hung, swing and vertically centre pivoted leaves
  • Installation on wooden, PVC or metal windows
  • Leaf or frame installation

Technical data

Power lock
Space needed on frame (min.) Space requirement should be determined individually
Space requirement on leaf (min.) Space requirement should be determined individually
Possible stroke heights 22 mm
Opening speed ventilation 3.6 mm/s
Compressive force 800 N
Tensile force 800 N
Voltage at operation ± 25 %, ± 25 %
Operating voltage 24 V DC
Current consumption 1.5 A
Power consumption 36 W
Duty rating 30 %
Connection cable length 2 m
Special length of power supply cable 5 m, 7.5 m
min. core dimension 0.75 mm²
Number of cables 4 cores
Temperature range -5°C...+70°C
IP rating IP42
protection rating III
Adjustable opening speed (ventilation) Yes
SHEV tested Yes
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window INWARD-opening leaf installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
