Opening drives

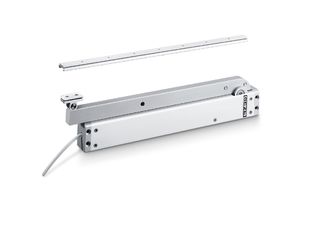

RWA K 600 G * Retractable arm drive for installation on doors and windows with fixed connection via guide rail

  • 90° window opening in less than 60 seconds
  • Powerful drive with high torque
  • Connection cable easy to replace by means of plug
  • Integrated status contact for feedback signals
  • Integrated Syncro module that can operate max. two drives without external control unit
  • SHEV tested according to EN 12101-2
Contact us

Retractable arm drive for installation on doors and windows with fixed connection via guide rail

Application Areas

  • Smoke and heat extraction and natural ventilation (24 V)
  • Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Installation on wooden, PVC or metal windows
  • Leaf and frame installation
  • Door installation possibl

Technical data

RWA K 600 G
Dimensions 421 x 40 x 86 mm
Compressive force 600 N
Tensile force 600 N
Voltage at operation ± 25 %, ± 25 %
Operating voltage 24 V DC
Current consumption 1.4 A
Residual ripple (max.) 20 %
Duty rating 30 %
Connection cable length 5 m
Special length of power supply cable 10 m
min. core dimension 0.5 mm²
Number of cables 5 cores
Temperature range -5°C...+75°C
IP rating IP32
protection rating III
Syncro function Yes
Adjustable opening speed (ventilation) Yes
Additional locking available Yes
Type of additional locking device Locking drive
Type of stroke shortening Synchronising unit
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
Synchronisation (max.) 2 drives
Bottom-hung window INWARD-opening frame installation Yes
Bottom-hung window INWARD-opening leaf installation Yes
Bottom-hung window OUTWARD-opening frame installation Yes
Bottom-hung window OUTWARD-opening leaf installation Yes
Side-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening door leaf installation Yes
Side-hung window OUTWARD-opening frame installation Yes
Side-hung window OUTWARD-opening door leaf installation Yes
Top-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening leaf installation Yes
Top-hung window OUTWARD-opening frame installation Yes
Top-hung window OUTWARD-opening leaf installation Yes
