Manual fanlight openers

OL 90 N top-hung outward-opening * Fanlight opener for ourward-opening top-hung leaves with an opening width of 170 mm

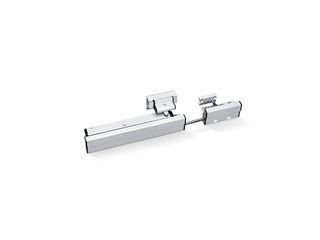

GEZE OL 90N scissors
  • Achieves the full opening width of 170 mm for all leaf heights
  • The opening width can be adjusted
  • Little space necessary thanks to flat design of the scissors
  • Integrated leaf locking mechanism in the scissors ensures secure locking
  • Special locking mechanism increases safety and air-tightness
  • Simple scissor re-setting or unhooking using the release button enables window cleaning from the inside and outside
Show more
  • Completely pre-mounted assembly groups facilitate installation
  • Leaf bracket fits all overlap heights and materials
Contact us

Application Areas

  • Convenient daily ventilation for rooms and staircases
  • Outward-opening top-hung windows with a reveal depth of 0-60 mm
  • Automation by E 212 electric linear drive
  • Installation on wooden, plastic or aluminium windows
  • Leaf installation

Technical data

OL 90 N top-hung outward-opening
Length 274 mm
Depth 54 mm
Height 61 mm
Opening width (max.) 170 mm
Leaf width (min.) 400 mm
Leaf height (min.) 370 mm
Leaf weight (max.) 80 kg
Fitting stroke 54 mm
Adjustable opening width (stroke reduction) Dependent
Leaf locking mechanism integrated in the scissors Yes
Scissor unhooking by release button Yes
Burglar-resistant locking mechanism (SKG-certified) Yes
