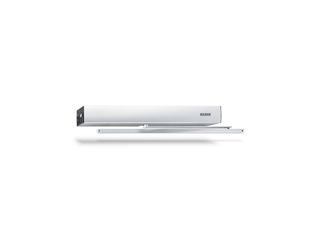

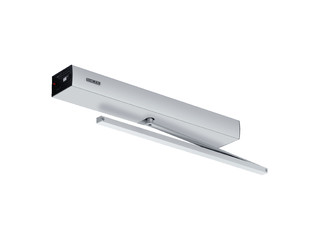

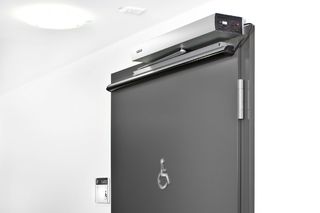

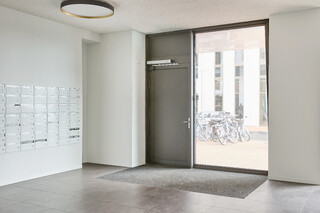

GEZE Slimdrive EMD-F

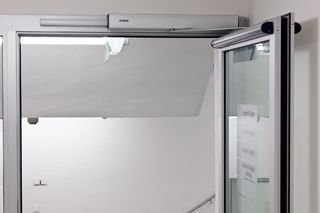

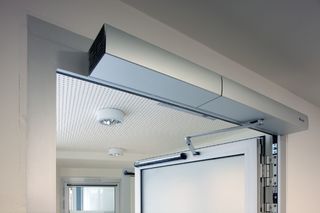

Slimdrive EMD-F * Electromechanical swing door drive for single leaf fire and smoke protection doors

Slimdrive EMD-F
  • Closing force with variable adjustment of EN 4-6
  • Opening and closing speed can be individually adjusted
  • Mechanical latching action when operated without current, and electrical latching action in regular operation, which accelerates the door shortly before the closed position
  • Low-energy function opens and closes the door with reduced speed, fulfilling the highest safety demands
  • Servo function for motorized support when manually opening the door
  • Vestibule function controls the opening and closing of two consecutive doors (interlocking door system)
Show more
  • Obstacle detection detects an object through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening position
  • Push & Go function triggers the automatic drive following light manual pressure on the door leaf
  • Drive can be used with roller guide rail or link arm
Contact us

Electromechanical swing door drive for single leaf fire and smoke protection doors

Application Areas

  • Fire and smoke protection doors
  • Single-action, single leaf, right and left closing doors
  • Single-action doors up to 1400 mm leaf width or 230 kg weight
  • Interior and exterior doors with high access frequency

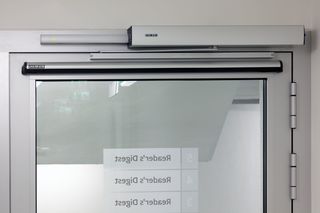

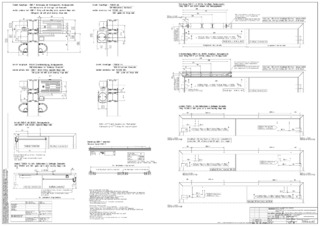

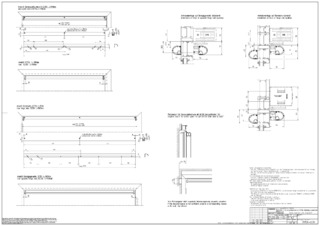

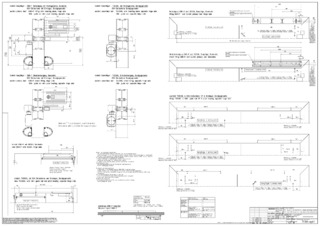

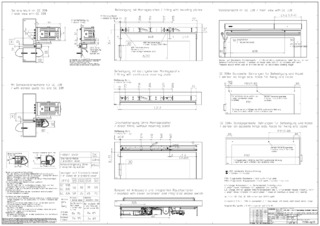

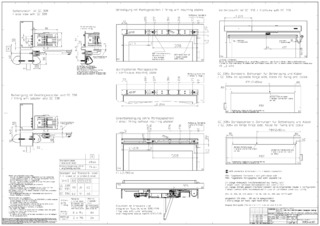

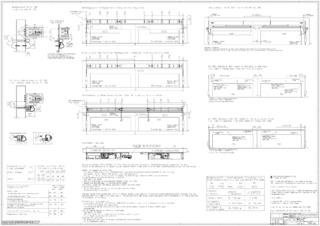

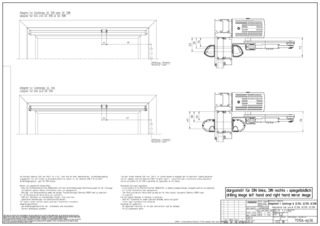

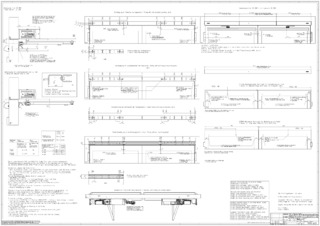

  • Door leaf installation and transom installation

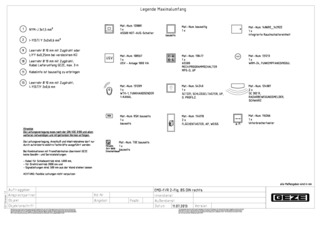

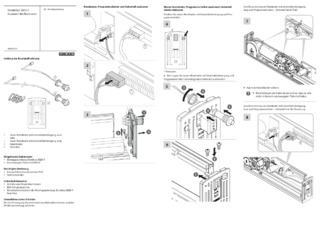

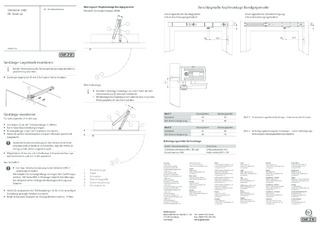

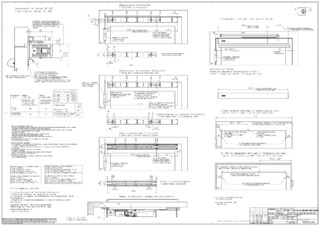

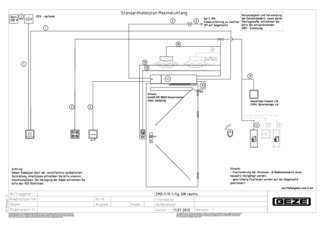

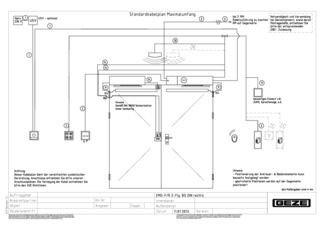

Product specifications

Slimdrive EMD-F
Height 70 mm
Depth 121 mm
Leaf weight (max.) 1-leaf 230 kg
Hinge clearance (min.-max.) 2-leaf 1500 mm - 2800 mm
Leaf width (min.-max.) 750 mm - 1400 mm
Reveal depth (max.) 400 mm
Door overlap (max.) 30 mm
Drive type Electromechanical
Opening angle (max.) 130 °
Spring pre-load EN4 - EN6
Z-variant (pulling) No
Z-variant (pushing) No
DIN left Yes
DIN right Yes
Installation in the door leaf No
Installation in the door frame No

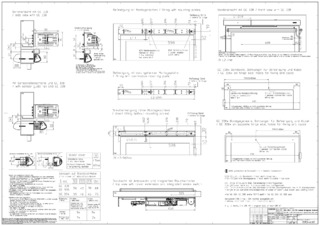

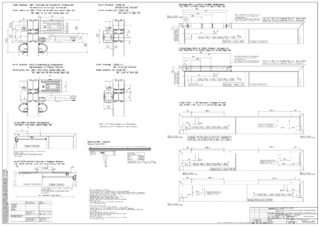

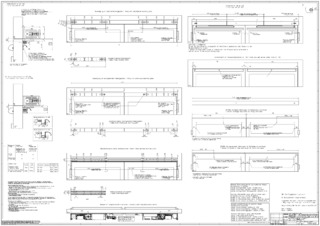

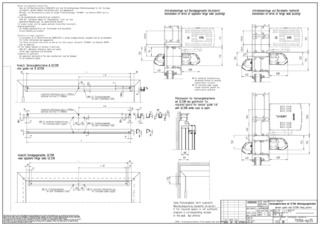

Transom installation opposite hinge side with link arm Yes
Transom installation opposite hinge side with roller guide rail Yes
Transom installation opposite hinge side with guide rail No
Transom installation hinge side with guide rail No
Transom installation hinge side with roller guide rail Yes
Transom installation opposite hinge side with guide rail on all-glass doors No
Transom installation hinge side with guide rail on all-glass doors No
Door leaf installation opposite hinge side with guide rail No
Door leaf installation opposite hinge side with roller guide rail No
Door leaf installation hinge side with guide rail No
Door leaf installation hinge side with roller guide rail Yes
Door leaf installation hinge side with link arm No
Mechanical latching action Yes
Electrical latching action Yes

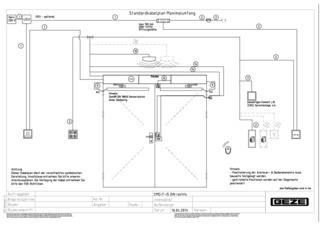

Electrical closing sequence control Yes
Mechanical closing sequence control No

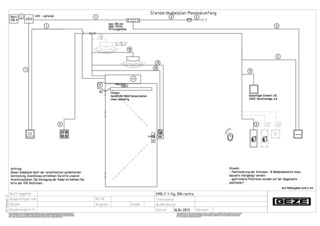

Disconnection from mains Main switch in the drive
Activation delay (max.) 20 s
Operating voltage 230 V
Power rating 230 W
Power supply for external consumers (24 V DC) 1000 mA
Operating temperature -15 °C - 50 °C
IP rating IP20
Mode of operation Off, Automatic, Permanently open, Shop closing, Night
Type of function Fully automatic
Automatic function Yes
Low-energy function Yes
function smart swing No
Servo function Yes
Key function Yes
Inverse function (opening by spring force) No
Vestibule function Yes
Obstacle detection Yes
Automatic reversing Yes
Push & Go adjustable
Operation Programme switch DPS, Programme switch integrated in the drive
Parameter setting GEZEconnects (PC + Bluetooth), ST 220 service terminal
Approvals DIN 18650, DIN 18263-4, EN 16005
Suitability for fire protection doors Yes
Integrated smoke switch No
Use on fire and smoke protection doors (F-variant) No
