Slimdrive SL-FR-RC2 * Automatic linear sliding door system with burglar resistance in accordance with resistance class RC2
- Escape route function with redundant drive design
- Certified burglar resistance according to resistance class RC2
- The RC2 function is only available in the "Night" mode of operation, since the door does not have to fulfil any escape route stipulations
- Equipped with a rod locking and reinforced profile components
- Very quiet running, low-wear direct current drive with a height of only 7 cm
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
- Self-cleaning roller carriage reduces maintenance effort and costs
Application Areas
- Single and double leaf sliding door systems along escape and rescue routes
- Interior and exterior doors with maximum safety requirements
- Opening widths of 800 to 3000 mm possible
- Door leaf weight of up to 120 kg per leaf
- Suitable profile systems are fine-framed profile systems with ISO and mono glass, in accordance with the RC2 resistance class
- Suitable for various profile systems

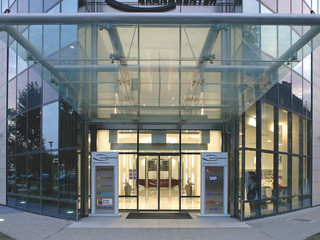

Installation situations in reference objects and videos
Technical data
Slimdrive SL-FR-RC2 | |
For 1-leaf door systems | Yes |
For 2-leaf door systems | Yes |
Fine-framed insulating glass | Yes |
MONO glass fine-framed | Yes |
Height | 70 mm |
Depth | 190 mm |
Leaf weight (max.) 1-leaf | 120 kg |
Leaf weight (max.) 2-leaf | 120 kg |
Opening width 1-leaf | 700 mm - 3000 mm |
Opening width 2-leaf | 900 mm - 3000 mm |
Service temperature | -15 - 50 °C |
IP rating | IP20 |
Disconnection from mains | Main switch in the drive |
Standard conformity | AutSchR, DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005 |

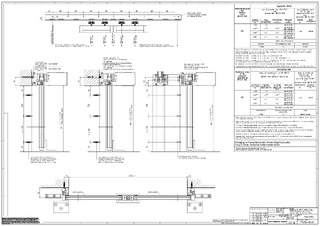

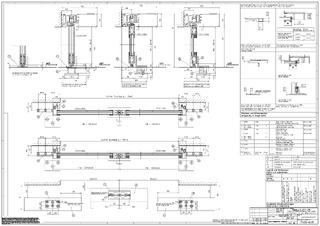

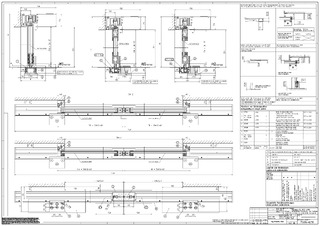

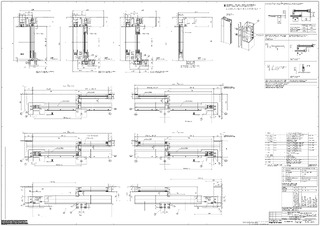

Downloads
