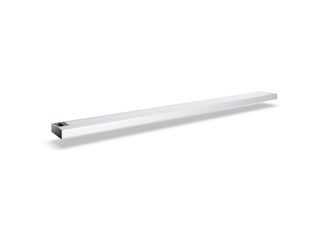

Slimdrive SLT * Automatic telescopic sliding door system for use in narrow glass façades

Slimdrive SLT
  • Two parallel-running tracks guide the door leaves and thus achieve high opening widths
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Can be networked via CAN bus and integrated into building technology management systems
  • Independent error recognition and recording
  • Freely configurable inputs and outputs for different functions
  • Integrated battery for emergency opening and closing in the event of a power failure
Show more
  • Various mechanical and electrical locks are optionally available
Contact us

Automatic telescopic sliding door system for use in narrow glass façades

Application Areas

  • Double and four leaf sliding door systems
  • In confined spaces with small clear opening width or little space next to the door opening
  • Interior and exterior doors with high access frequency
  • Opening widths of 1000 to 3600 mm possible
  • Door leaf weights of up to 80 kg per leaf
  • Suitable profile systems are fine-framed profile systems with ISO glass and integrated all-glass systems (IGG)

Product data

Slimdrive SLT
For 1-leaf door systems -
For 2-leaf door systems Yes
For 4-leaf door systems Yes
ISO glass fine-framed Yes
MONO glass fine-framed No
All-glass system (GGS) No
Integrated all-glass system (IGG) Yes
Framed leaf (on site) No
Wooden leaf (on site) No
Depth 247 mm
Leaf weight (max.) 2-leaf 80 kg
Leaf weight (max.) 4-leaf 70 kg
Opening width 2-leaf 1000 mm - 3000 mm
Opening width 4-leaf 1600 mm - 3600 mm
Service temperature -15 °C - 50 °C
IP rating IP20
Disconnection from mains Main switch in the drive
Approvals DIN 18650, EN 16005, DIN EN ISO 13849: Performance Level D
